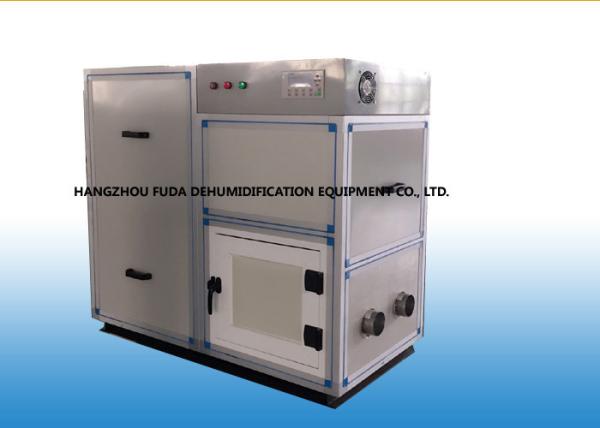

Compact Industrial Desiccant Wheel Dehumidifier , Dry Air Equipment 5.8kg/h

Compact Industrial Desiccant Wheel Dehumidifier , Dry Air Equipment 5.8kg/h

Quick Detail:

Style: Wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel Wheel
Rated Air Flow: 800m³ /h
Rated Dehumidification Capacity: 5.8kg/h
Dehumidifier Quality: High
Installed Power: 8.24kw
Voltage: 380V, 3 phase, 50Hz or customized
Certification: ISO9001:2008

Features: Economical, energy-saving
Usage: Air humidity control

Features:

• Can accurately reach required absolute moisture content in air, but the air temperature must be controlled by the user.
• Sweden import super silica gel wheel
• Process airflow: 200m³/h---25000m³/h, can be customized
• Siemens PLC + User friendly interface control system
• Aluminum alloy frame, anti-cold bridge
• Body modularization design, foam injected double wall casing
• Faceplates filled in high density polyurethane foaming plastic with high pressure vesicant
• Pre-filter, rotary wheel with drive motor, blower, reactivation heater and fan, temp.&hum. sensor inside
• Electric, steam, heat transfer oil, gas reactivation or convert type is option
• The surface plate of bottom board is made of 304 stainless steel.
• Can be connected with cooling unit or stand alone

General Description:

ZCS-800 Desiccant Wheel Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

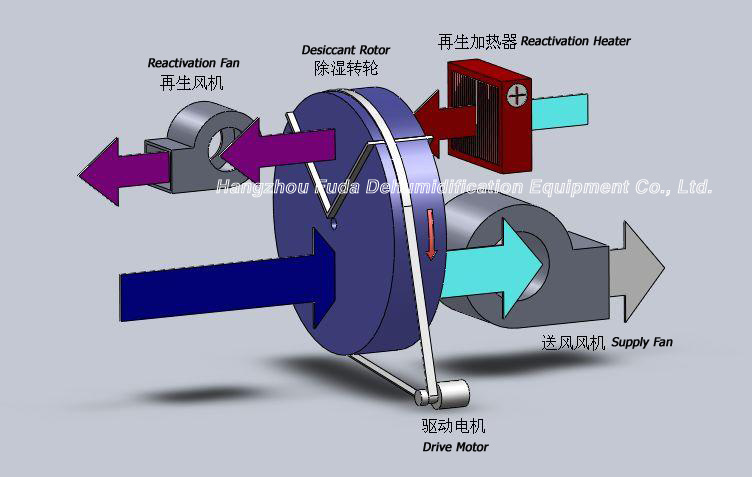

Work Principle:

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.


Applications:

• War Industry, Scientific Research, Electric Power Transportation
• Lithium Battery Industry, Biotechnology Pharmaceutical Industry
• Chemical, Daily Chemical Industry, Food Beverage Industry
• Safety Glazing Material Industry, Tyre and Rubber Industry
• Medical Instrument, Vegetables Frozen, Precise Instrument
• Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Competitive Advantage:

• Good dehumidifying capacity
• Compact structure,
• Stability and reliability,
• Easy operation and maintenance

Specifications:

User Friendly Interface Control System:

We can make suitable dehumidifying solution for you according to your requirements. If you have any question about air humidity, pls contact us now.
